See how the finished plan looks.
This is the plan from the walkthrough above, exactly as MIRACLE exports it: one Excel file, ready for the crew.
The MIRACLE platform
Where cargo planning comes together.
Plan cargo operations, prepare tank-cleaning procedures and keep relevant operational knowledge close at hand.
The planning context
Plan cargo operations in full context.
MIRACLE gives you the information to plan the operation in one place. Spend less time searching, checking and connecting separate sources.
Built around the requirements you work with
MARPOL Annex I & II · IBC Code and Tripartite agreements · USCG reactivity checks · FOSFA, NIOP, EU, CODEX, AQSIQ and Kosher acceptance criteria · GESAMP hazard profiles · INTERTANKO cleanliness standards
Styrene Monomer → Methanol
Cleaning to High Purity (Recipe is for 1000 m³ tank)
Method 2
1Butterworth
1,5 hoursSea WaterAmbient
Ambient temperature due to polymerization
2Butterworth
1 hourSea Waterapprox. 50 °C
3Recirculation
1 hourSea Water or Fresh Water60 °C to 70 °C0,2-0,4% CTC-Cleaner-VLC
4Rinse
20 minutesFresh WaterAmbient
5Vent/Mop/Dry
Tank-cleaning planning
Proven procedures for the cargo transition ahead.
Styrene Monomer → Methanol
Cleaning to High Purity (Recipe is for 1000 m³ tank)
Method 2
1Butterworth
1,5 hoursSea WaterAmbient
Ambient temperature due to polymerization
2Butterworth
1 hourSea Waterapprox. 50 °C
3Recirculation
1 hourSea Water or Fresh Water60 °C to 70 °C0,2-0,4% CTC-Cleaner-VLC
4Rinse
20 minutesFresh WaterAmbient
5Vent/Mop/Dry
Get a detailed, practice-proven cleaning procedure for the operation at hand. MIRACLE sets out the method, timing, medium, temperature, cleaner and operational remarks for the tanks involved.
Developed through decades of operation
MIRACLE procedures have been developed and refined in tanker operations since the early 2000s. They combine that practical experience with CTC Chemtec Chemicals' specialist knowledge of cleaner selection and dosage.

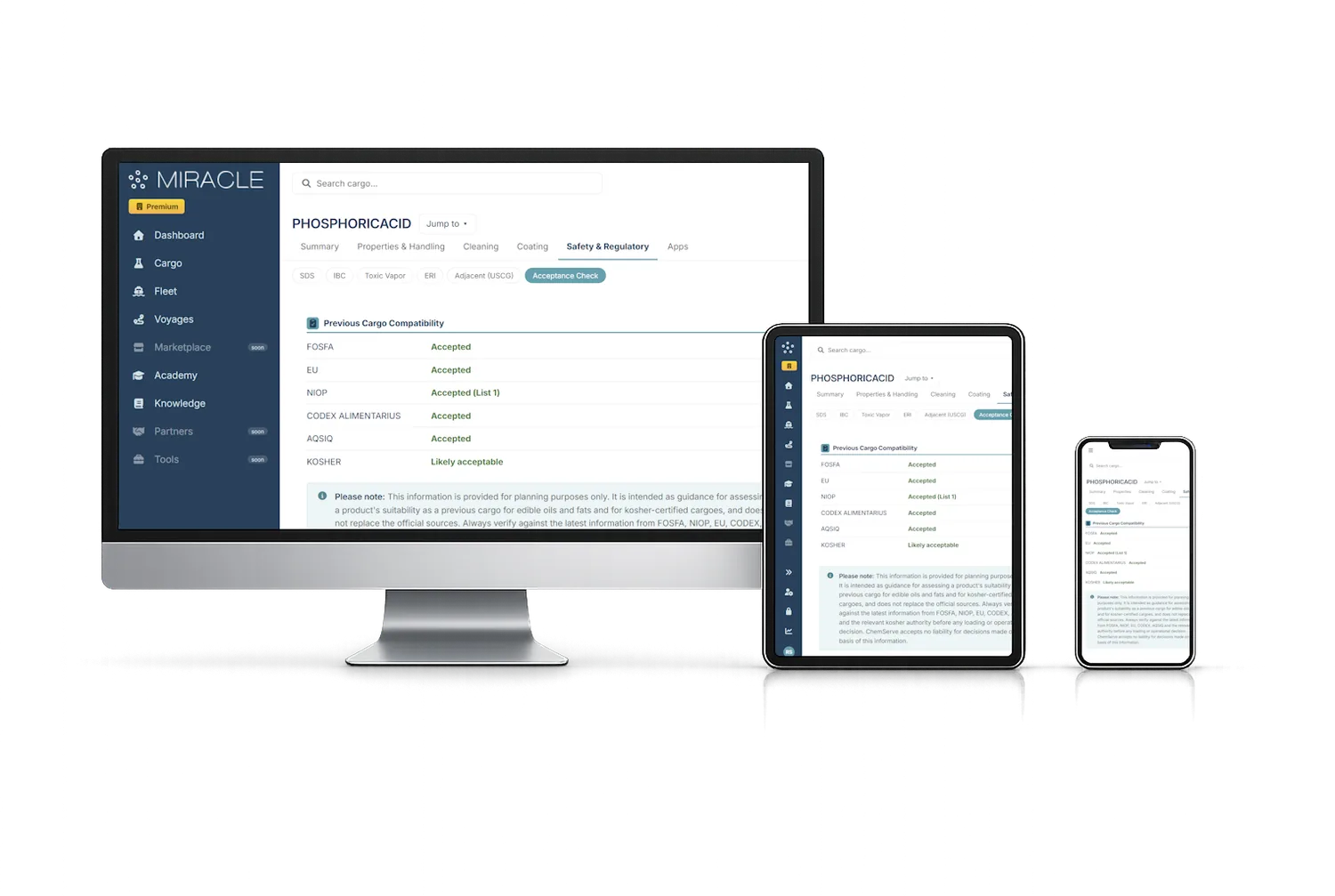

Ship and shore
Ready to use on every device.
Open MIRACLE in the browser and start straight away, ashore or on board. Use the same modern interface across your devices. MIRACLE works offline too.
From procedure to plan
Create a Tank Cleaning Plan in minutes.
Bring cargo, vessel and procedure details together in one working plan. Explore the workflow below.
1
Choose the cargo transition
Start with the cargo to be cleaned and the cargo to be loaded. MIRACLE then builds the plan around the actual operation.
Cargo to be cleaned
Styrene monomer
Cargo to be loaded
Methanol
The future of tank-cleaning verification
UV Analysis, built into MIRACLE.

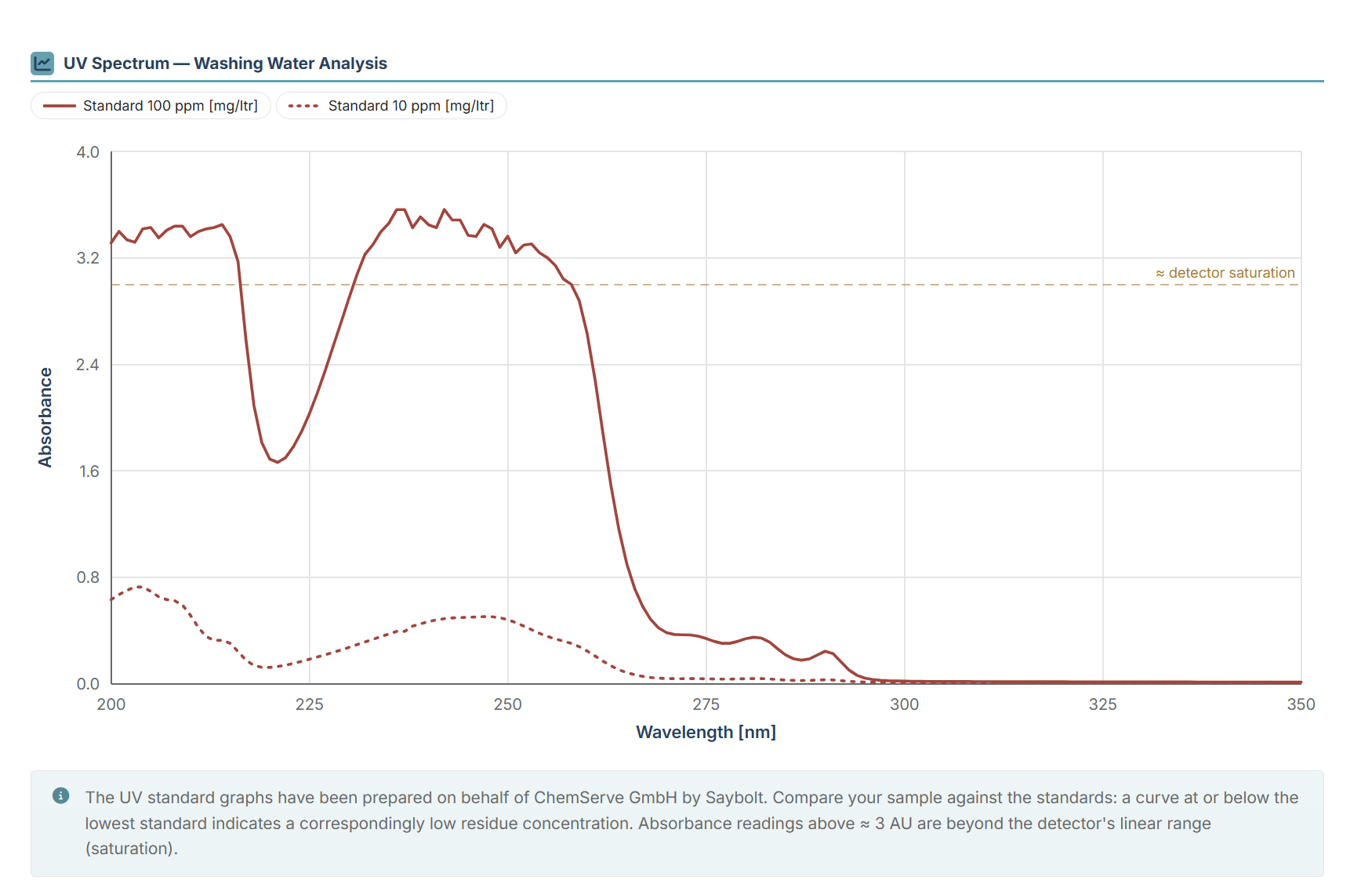

UV Analysis for Styrene Monomer
UV spectrophotometry is becoming an important part of tank-cleaning verification. MIRACLE brings standard graphs and your own readings into the planning workflow, alongside the cargo and cleaning procedure.
Execute
Carry out the cleaning procedure for the cargo transition.
Measure
Add the UV-spectrophotometer reading from the washing-water sample in MIRACLE.
Interpret
Compare the reading with the relevant standard and assess whether further washing may be needed.
UV Analysis for Styrene Monomer

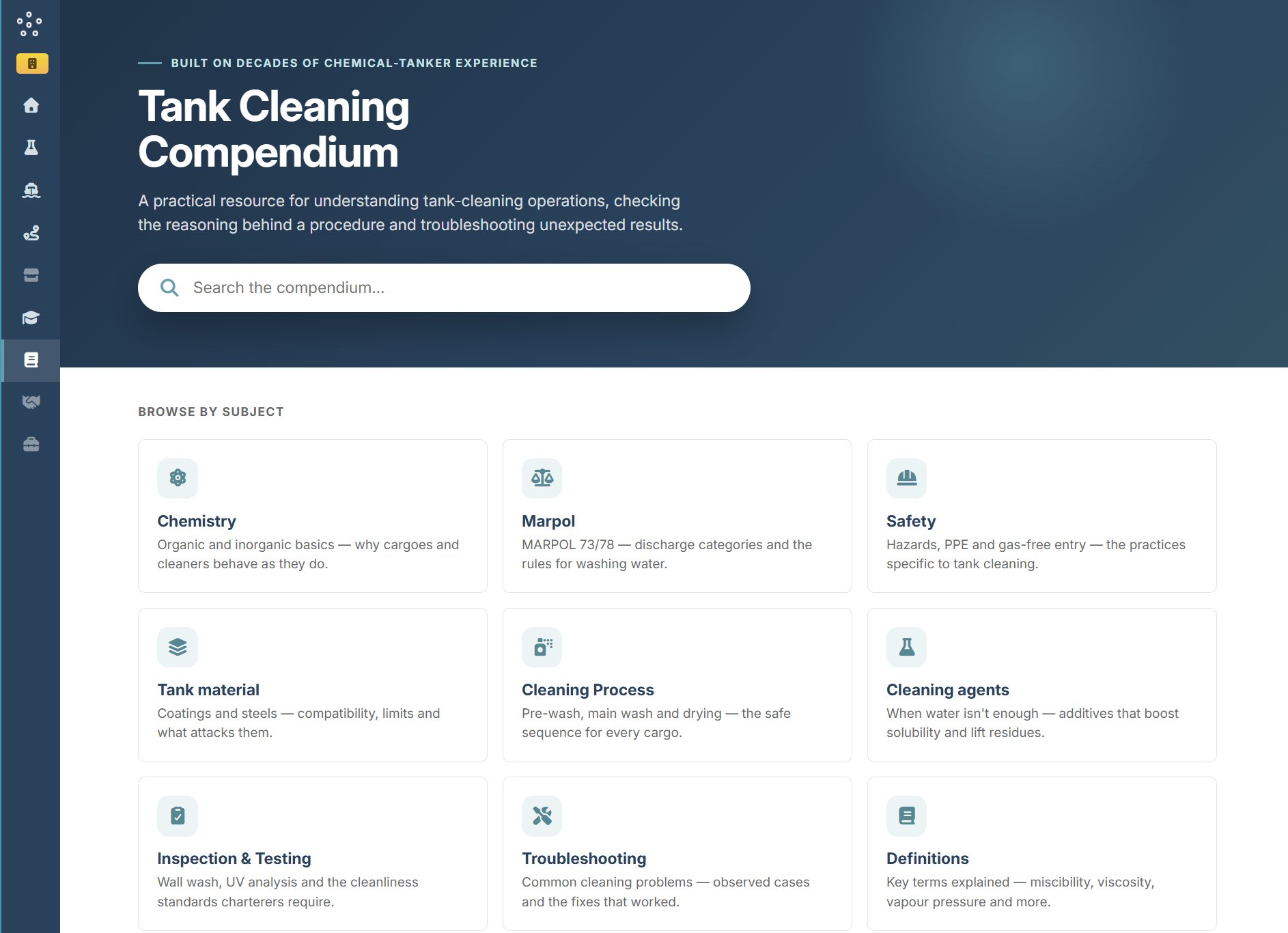

A built-in Tank Cleaning Compendium
Build and maintain operational knowledge.
Give new crew members a structured foundation and help experienced teams refresh specialist tank-cleaning knowledge. The Compendium keeps it available across your fleet.
Customer voices
MIRACLE in daily operations.
“GEFO vessels, superintendents and the chartering department use MIRACLE since 2009.”
“CSM has been actively using MIRACLE over the years and we have found it to be a very useful and interactive tool.”
Built around your operation
A platform that grows with you.
Start with the tools your team needs today. As your requirements evolve, MIRACLE adapts.
BASIC
- Complete cargo reference
- Acceptance and compatibility checks
- Regulatory and safety data
- Tank Cleaning Compendium, linked across MIRACLE
- Detailed cleaning procedures
- Troubleshooting module
- Live chat support by ChemServe experts
- Tank cleaning plan generator
- Excel export
PREMIUM
Everything in BASIC, plus:
- Company-specific notes and annotations
- Company Excel plan templates
- Expert online training
- Offline-capable ship application
- Synchronised notes between office and ship
- SDS Radar for current cargo safety data sheets
- API eligibility
API
The REST API integrates MIRACLE data into your own software. It is available when all offices and vessels use PREMIUM.
Questions and answers
Frequently asked questions about MIRACLE.
What is MIRACLE?
MIRACLE is a platform for cargo handling and tank cleaning on chemical and oil tankers. It holds cargo specifications, acceptance and compatibility checks, regulatory and safety data and detailed cleaning procedures, and it generates the Tank Cleaning Plan for a specific cargo transition.
Who works with MIRACLE?
Chartering and operations teams ashore, superintendents and crews on board. Columbia Shipmanagement was one of the first companies on MIRACLE and has worked with it since the early 2000s.
How is MIRACLE different from a cargo database?
A database answers what a cargo is. MIRACLE also answers how to prepare the tanks for it: the cleaning procedure with method, sequence, medium, temperature, cleaner and dosage for the specific transition, and the finished plan the crew works from.
Which cleanliness standards does MIRACLE cover?
All four INTERTANKO standards: Visually Clean, Water-White, High Purity and Ultra-High Purity. ChemServe is the only company with reliable cleaning recipes for the two high-purity standards.
Can MIRACLE be used on board?
Yes. MIRACLE SHIP gives crews access to the same platform as the office. In PREMIUM the ship application is offline-capable, and notes stay synchronised between office and vessel.
What is the difference between BASIC and PREMIUM?
BASIC covers the cargo reference, acceptance and compatibility checks, regulatory and safety data, the cleaning procedures, the Tank Cleaning Compendium, the Troubleshooting module, the plan generator and Excel export. PREMIUM adds company notes and annotations, your own Excel plan templates, expert online trainings, the offline-capable ship application, synchronised notes and SDS Radar.
Can MIRACLE produce plans in our own Excel format?
Yes. Every Tank Cleaning Plan exports to Excel. In PREMIUM you upload the Excel sheet your company already works with, and MIRACLE fills it with the plan data.
Is there an API?
Yes. The REST API integrates MIRACLE data into your own software. It is available when all offices and vessels use PREMIUM.
How do we start?
With a guided trial on your own cargo transitions. Every trial begins with a personal onboarding, so your team starts with the workflow set up for your operation.
See it for yourself
See how MIRACLE supports your team.
Every trial begins with a personal onboarding, where we work through a cargo transition together.
Prefer to talk it through first? +49 4104 9078550sales@chemserve-marine.com
